FireSense 1.25lt Alloy Mechanical Fire System

Utilising a superior quality AR-SFFF synthetic fluorine free foam concentrate, our extinguishers can be used in countries where traditional AFFF foams have been banned, 100% environmentally friendly water-based foam that has been approved by the FIA. Designed for extinguishing and securing all types of flammable liquid fires with excellent coverage. It has excellent fire knock down properties and leaves a film which helps prevent re-ignition of the fire.

The FireSense 1.25 litre mechanical fire extinguisher system uses a Lightweight Alloy Bottle and compact system.

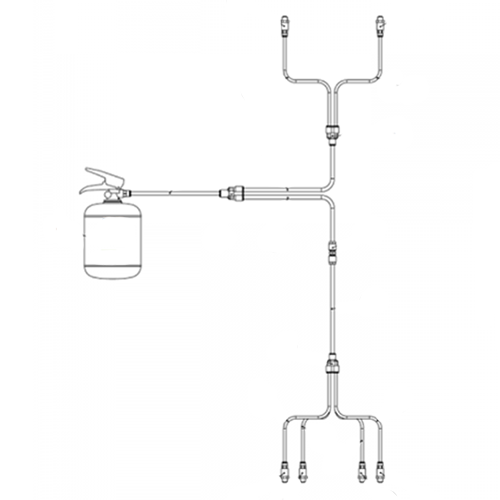

Installation couldn’t be more straightforward, using 8mm pipework throughout the system and only 4 nozzles for the engine and 2 for the cockpit to disperse the AR-SFFF, installing the system can be done by someone with little to no mechanical knowledge.

This 1.25 litre fire extinguisher system from FireSense is the lightest and most compact system they offer. Suitable for all single seater race cars the bottle length is just 257.5mm including the mechanical levers.

Extremely lightweight and compact, ideal for weight saving

Excellent fire suppressing capabilities for such a small system

Kit includes:

1.25 Litre Lightweight Alloy Bottle
2 x Mounting Bracket & Straps
2 x Pull Cables
4 x Nozzles
9.5m Tubing
Tube Connectors
Decals
Instruction Manual

Dimensions: Length (Inc Head) - 258mm, Diameter 127mm
Cylinder Weight: 2.40kg
Installation Kit Weight: 1.40kg maximum, if all the tubing is used for your installation

FIA Technical list 16 approved - FIA Homologation Number EX.054.19
