FireSense+ SFI 17.3 5lbs Speedway Open Wheel system

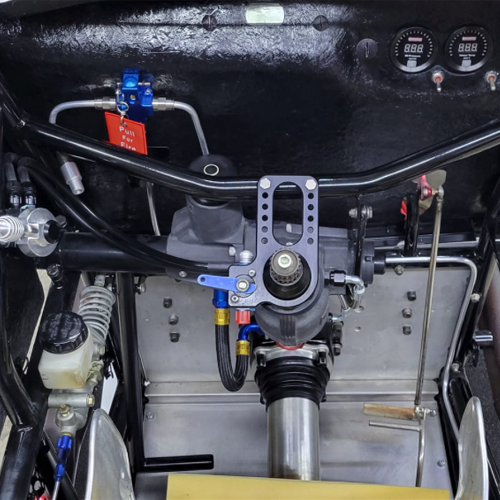

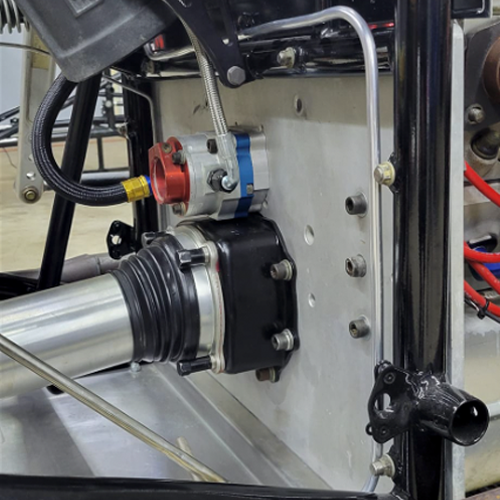

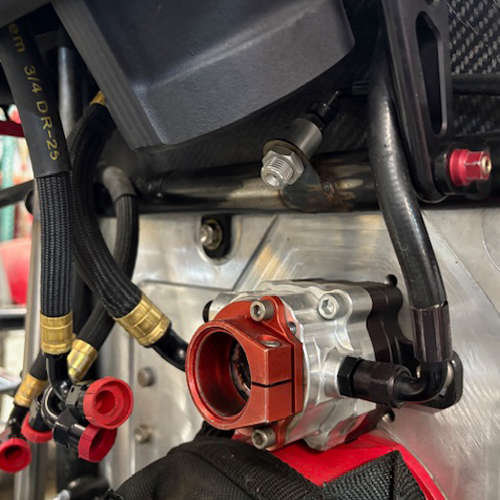

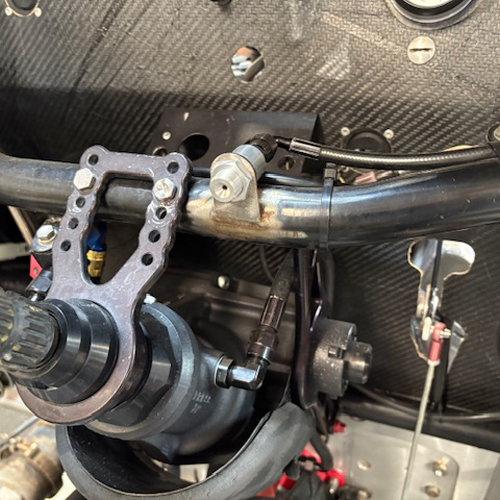

SPA Technique SFI17.3 certified 5lb FireSense+ with 4Fire Universal Fire System with both it's remotely mounted -4 AM Block allowing the driver/team to place the nozzles in the drivers cockpit and fire bottle, in the locations that best suits their car, and then plumb up with standard -4 hoses and fittings!

The first system certified to the newest SFI 17.3 specification for open wheel-front engine cars including Sprintcars, Wingless, Speedcars and Formula 500, comes with SPA Technique’s patented AM Block, which stands for Automatic Manual.

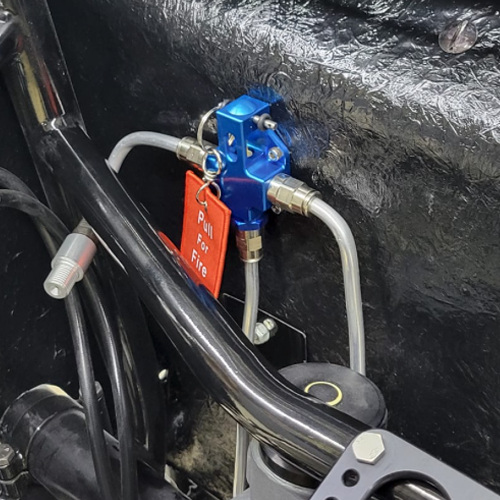

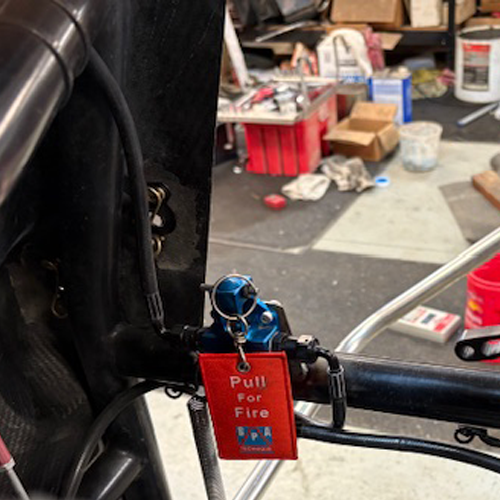

The FireSense the AM Block features an automatic trigger function. If internal temperatures of the cabin rapidly rise to extreme temperatures the system will automatically trigger. This safety feature ensures that in the event a fire quickly getting out of control or a driver losing consciousness or is trapped and unable to operate the system it will operate automatically. The system also features a built-in pressure release valve should the cylinder reach critical pressure due to a fire event it will safely release pressure preventing a dangerous cylinder explosion. The block also has a Manual "Pull for Fire" lanyard (an external pull cable is optional), that serves as a manual override for the driver, if they wish to activate the system before the heat gets to where the block is mounted.

The system utilises 4Fire Universal as the suppression agent. 4Fire
presents as an AFFF(aqueous film forming foam), which blankets everything
it touches. This means it’s cooling while also forming a boundary
layer, to help prevent re-ignition. It also offers quick fire-out times on par
with clean agents (gases) but in the open environment of a chassis Speedway chassis.

Chassis mounting options;

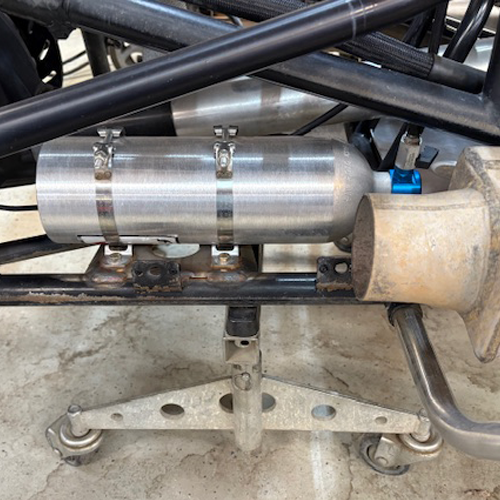

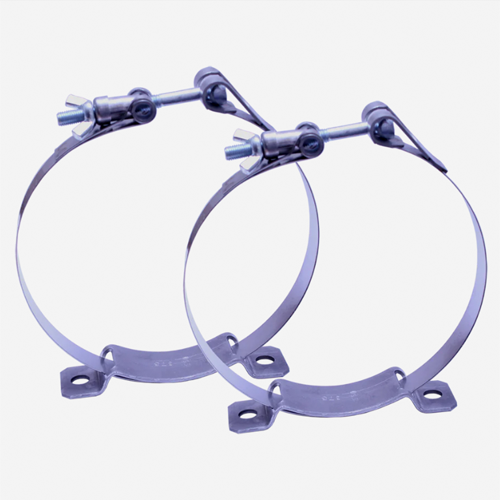

Stainless Steel Strap mounts suitable for use with the CSAM flat plate mountings

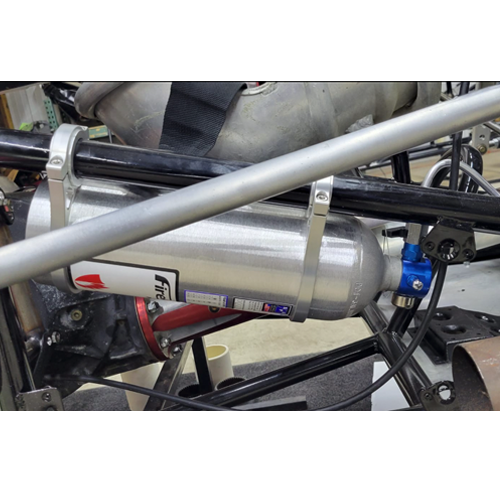

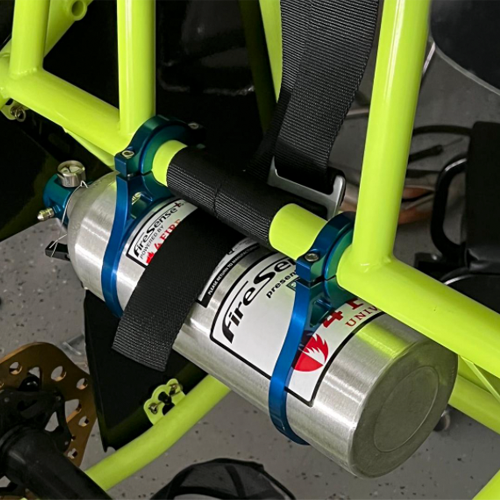

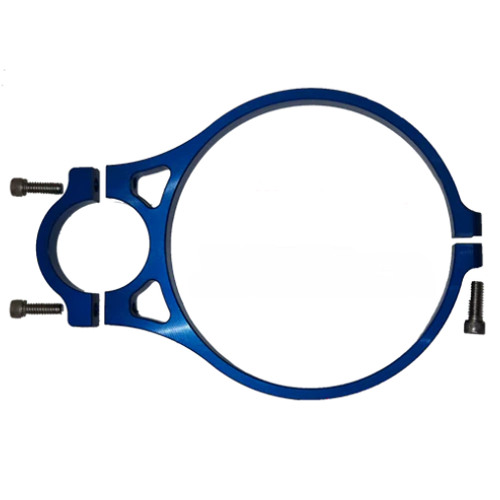

Billet Alloy mounts which clamp both the bottle & chassis separately for ultimate strength, and allowing it to be placed in the best location for weight distribution, either behind the seat or on the sides, 1.375", 1 3/8", 34.9mm diameter.

Each complete system includes the following:

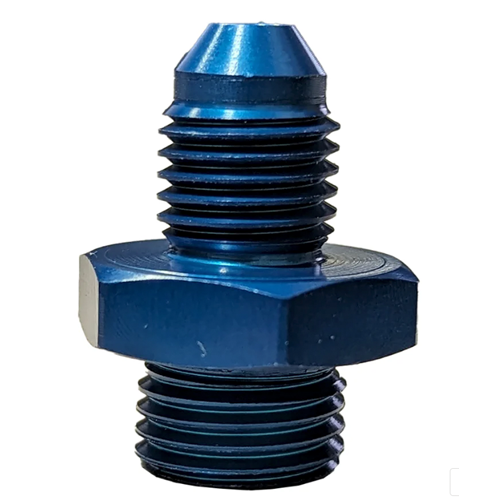

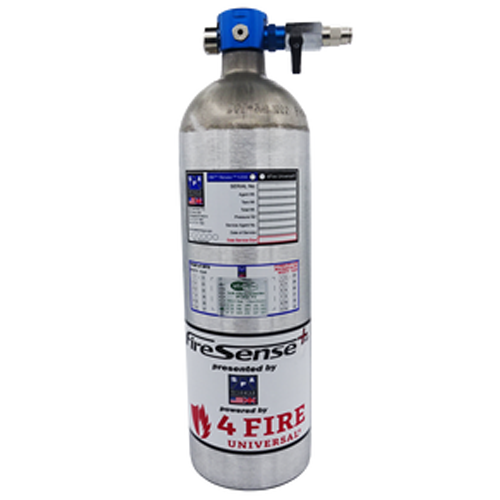

• 1 x Bottle - with Auto head and valve with -4 outlet

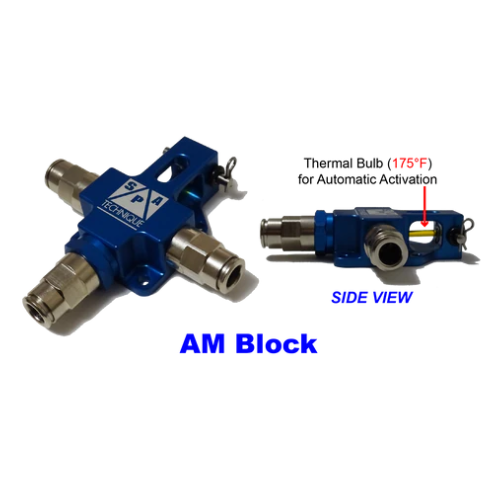

• 1 x AM Block with -4 outlets (contains thermal bulb rated at 175°F)
• 2 x Nozzles

• 1 x E-sticker

• Bottle Dimensions: 15 1/4" x 4 3/8"

• Bottle Weight filled: 8.8lbs

Mounting Options:

• Strap mount for use with CSAM mounting plates
• Billet Chassis mounts 1.375", 1 3/8", 34.9mm diameter to suit the chassis tube
