FireSense Extreme 2.25kg Electrical Fire System

The FireSense Extreme 2.25kg electrical fire extinguisher system is designed for enclosed small Saloon & Formula cars and features an extremely compact bottle allowing it to be fitted to any single seater car either classic or modern.

Suitable for small saloon race cars with a cockpit volume less than 2.3m3 cubed.

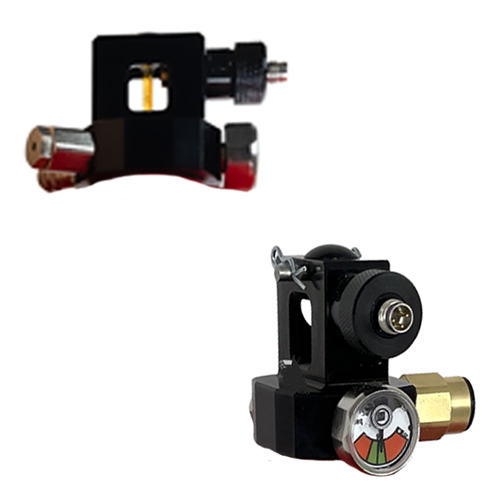

This particular extinguisher features an automatic trigger function. If internal temperatures of the cabin rapidly rise to extreme temperatures the system will automatically trigger. This new safety feature ensures in the event a fire quickly getting out of control or a driver losing consciousness or is trapped and unable to operate the system it will operate automatically. The system also features a built-in pressure release valve should the cylinder reach critical pressure due to a fire event it will safely release pressure preventing a dangerous cylinder explosion.

Compact dimensions suitable for fitting to any single seater race car Electrical operation for improved reliability, no pull cables to seize, snag or snap, FK-5-1-12 clean agent suppressant, highly effective at knocking down fires Lightweight aluminium bottle for weight reduction. Complete system weighs just 4.3kg

FK-5-1-12 is also 100% Non-Conductive, giving you peace of mind that electronic equipment will not be damaged when activated, and is suitable for use on electric & Hybrid cars. It is very effective on vehicle fires and leaves no residue, unlike foam based extinguishers.

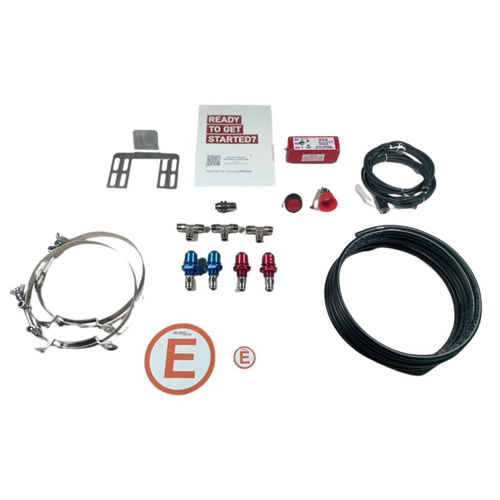

Kit includes:

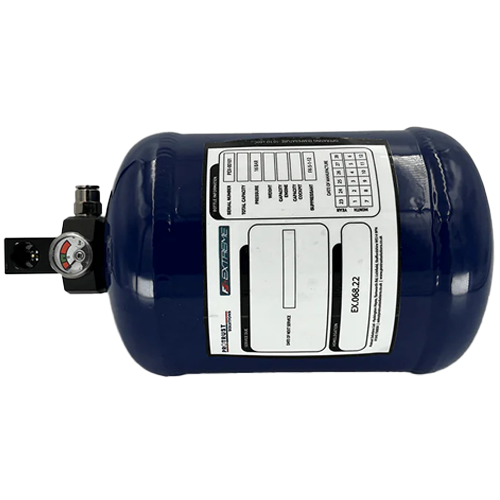

Lightweight Aluminium Bottle
Mounting Bracket and Straps
Power Pack
Plug and Cable Assemblies
Cockpit Switch
Waterproof External Switch

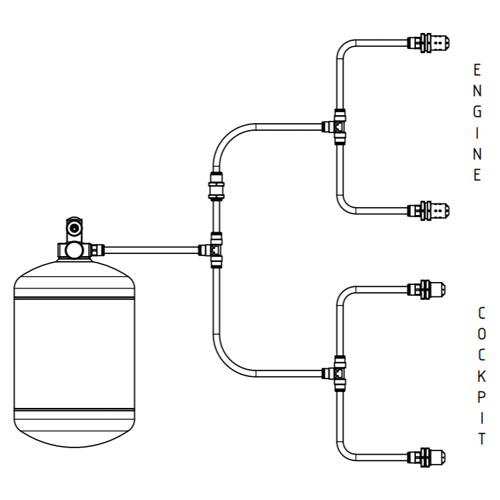

Nozzles
Tubing
T-Connectors
Decals
Instruction Manual

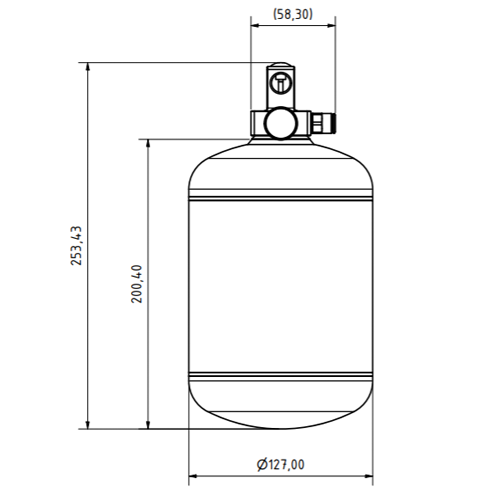

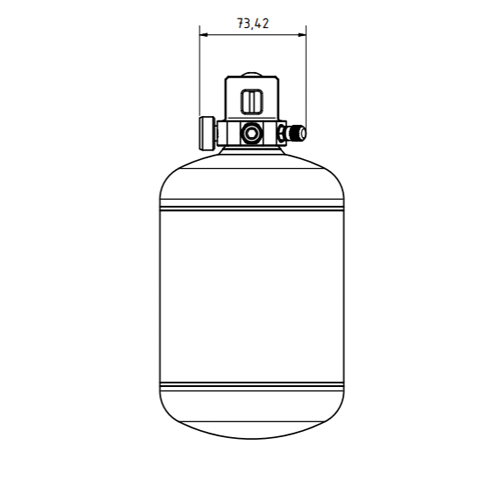

Dimensions: Length (Inc Head) 254mm, Diameter 127mm
Cylinder Weight: 3.23kg
Installation Kit Weight: 1.00kg

FIA Technical list 16 approved - FIA Homologation number EX.068.22
