FireSense 4.0lt Steel Auto Activation Electrical Fire System

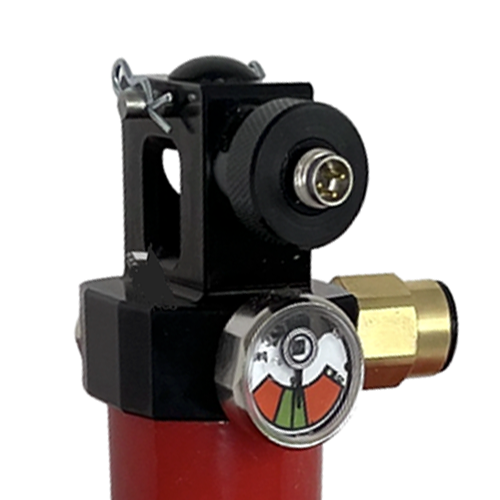

This particular extinguisher features a unique Auto Activation trigger function. If internal temperatures of the cabin rapidly rise to extreme temperatures the system will automatically trigger. This new safety feature ensures in the event a fire quickly getting out of control or a driver losing consciousness or is trapped and unable to operate the system it will operate Automatically. The system also features a built-in pressure release valve should the cylinder reach critical pressure due to a fire event it will safely release pressure preventing a dangerous cylinder explosion.

Utilising a superior quality AR-SFFF synthetic fluorine free foam concentrate, our extinguishers can be used in countries where traditional AFFF foams have been banned, 100% environmentally friendly water-based foam that has been approved by the FIA. Designed for extinguishing and securing all types of flammable liquid fires with excellent coverage. It has excellent fire knock down properties and leaves a film which helps prevent re-ignition of the fire.

The FireSense 4.0 Litre Auto Activation Electrical fire system uses a Steel Bottle which provides a cost effective entry level fire system for your race or rally car.

Installation couldn’t be more straightforward, using 8mm pipework throughout the system and only 2 nozzles for the engine and 2 for the cockpit to disperse the AR-SFFF, installing the system can be done by someone with little to no mechanical knowledge.

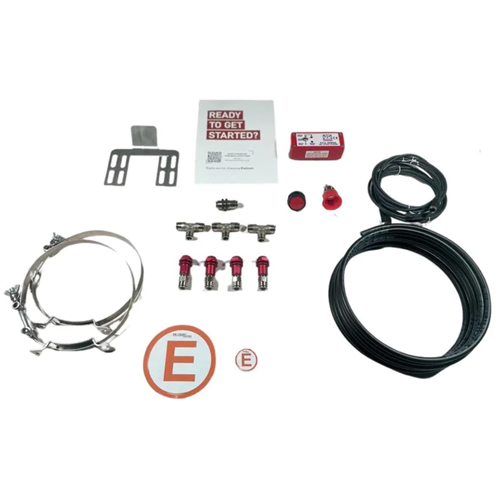

Kit includes:

4 Litre Steel Bottle
Mounting Bracket and Straps
Power Pack
Plug and Cable Assemblies
Cockpit Switch
Waterproof External Switch
Nozzles
Tubing
Tube Connectors
Decals
Instruction Manual

Dimensions: Length (Inc Head) - 400mm, Diameter 150mm
Cylinder Weight: 7.0kg
Installation Kit Weight: 1.00kg

FIA Technical list 16 approved - FIA Homologation Number EX.066.22
